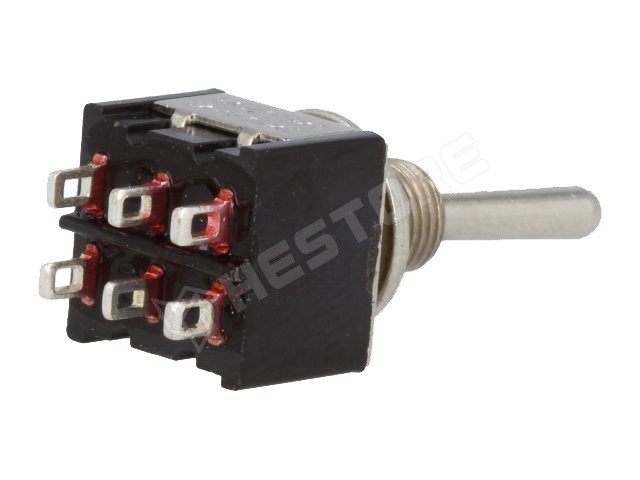

TSM212A1

Kapcsoló (nyelves, 6P, 3A/250V) DPDT ON-(ON)

Manufacturer partno	TSM212A1
RoHS	yes
Manufacturer	NINIGI
Operating temperature	-25...85°C
Body dimensions	13.2x12.9x9.5mm
Related items	TSPC05-M
Leads	for soldering
Type of switch	toggle
Stable positions number	1-position
Switching method	ON-(ON)
Contacts configuration	DPDT
Mounting hole diameter	Ø6mm
Soldering temperature	260°C / 4 s
Max. contact resistance:	20mΩ
Body colour	black
Knob height	11mm
Electrical life	20000cycles
Actuator material	metal
AC contacts rating @R	3A / 250V AC
Összes pozíciók száma	2
Kind of toggle	round

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.366.24

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	543 Ft
5+	361 Ft
10+	335 Ft
20+	319 Ft
50+	305 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 500
