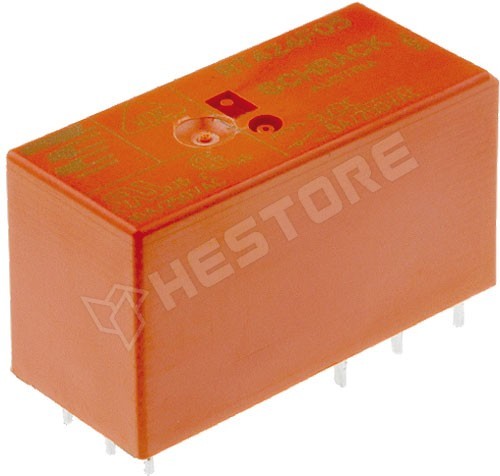

RT424F05

Relay, DPDT, 5V DC, 8A / 250V AC, 8A / 30V DC, Number of pins: 9

Manufacturer partno	5-1393243-2
RoHS	yes
Manufacturer	TE Connectivity
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-40...85°C
Number of pins	9
Body dimensions	29 x 12.7 x 15.7mm
Mechanical durability	1000000 cycles
Contact material	AgNi 90/10
Contacts configuration	DPDT
Type of relay	electromagnetic
Rated coil voltage	5V DC
Contact current max.	8A
Switched voltage	max 400V AC, max 220V DC
Relay variant	bistable, miniature
Coil resistance	42Ω
Coil voltage min.	3.5V DC
Coil power consumption	595mW
Relay series	RT2
Relay features	two coils
DC contacts rating @R	8A / 30V DC
AC contacts rating @R	8A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.365.96

Add to favorites

Quantity (pcs):

Packing:
20 pcs / tube

Unit price excl. VAT

1+	2 188 Ft
5+	1 939 Ft
10+	1 885 Ft
20+	1 842 Ft
60+	1 787 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 1000
