RELC-1CH-12V

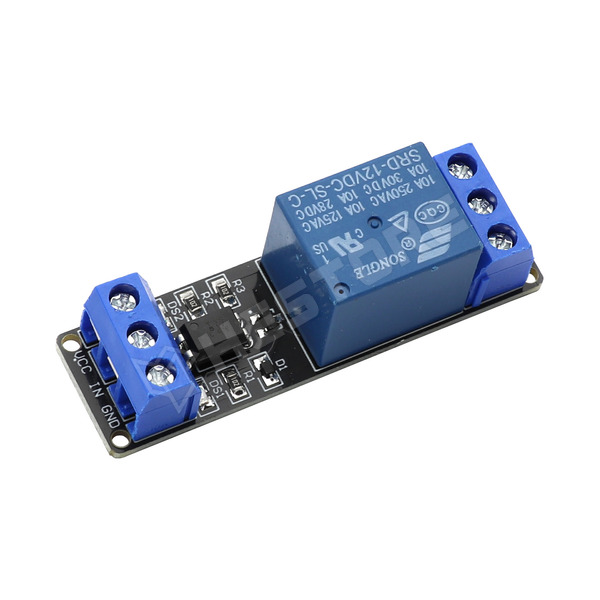

Universal 12V relay module, 1 channel, with light coupling, low level trigger

RoHS	no
Size	56.3 x 19.3 x 16.8mm
Number of channels	1
Supply voltage	12V DC
Switched voltage	250V AC
Switched current	10A
Control voltage	3.3...12V DC
Type of optocoupler	PC817
Relay out	NC-COM-NO
Control signal	active low
