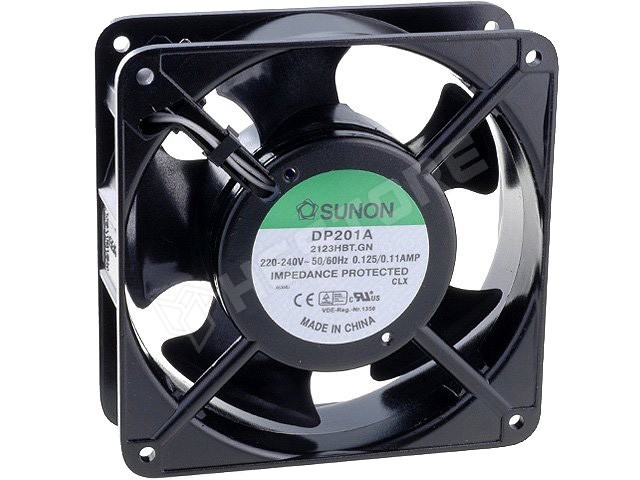

DP201A2123HST.GN

Fan, AC, 230V AC, 120x120x38mm, slide bearing, 144 (±10%)m3/h, shaft

Manufacturer partno	DP201A2123HST.GN
RoHS	yes
Manufacturer	SUNON
Size	120x120x38
Type	AC
Frequency	50Hz
Voltage	230V
Weight	550g
Operating temperature	-10...70°C
Supply voltage	230V AC
Enclosure material	Aluminium
Current rating	130mA
Leads	2,8x0,3mm connectors
Min. insulation resistance	500MΩ
IP rating	B
Flammability rating	UL94V-0
Type of fan	AC
Fan dimensions	120x120x38mm
Power consumption	20W
Fan efficiency	144 (±10%)m3/h, 144 (±10%)m³/h
Noise level	43dBA
Rotational rate/speed	2550ford/min
Current and power consumption tolerance	±15%
Impeller material	thermoplastic
Static pressure	6.35mm H₂O
Kind of fan	shaft
Kind of Bearing	slide bearing

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.364.91

Add to favorites

Quantity (pcs):

Packing:
40 pcs / carton

Unit price excl. VAT

1+	4 036 Ft
5+	3 711 Ft
10+	3 627 Ft
20+	3 554 Ft
40+	3 454 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 2000
