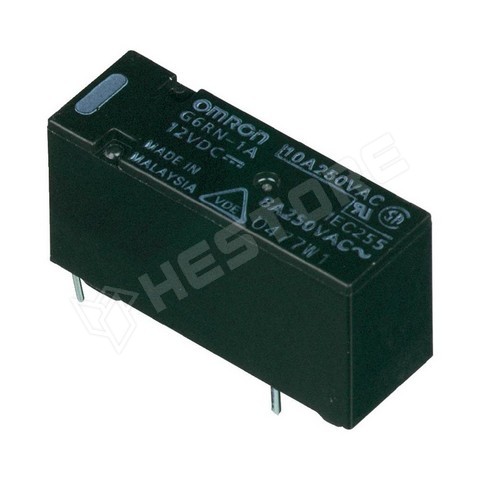

G6RN-1A 12VDC

Relé 250VAC/8A 1 ÁK

Manufacturer partno	G6RN-1A 12VDC
RoHS	yes
Manufacturer	OMRON
Current	8A
Coil	12V DC
Contact	SPDT
Voltage	250V AC
Mounting	PCB
Terminal pitch	5.1mm
Operating temperature	-40...85°C
Body dimensions	28.5 x 10 x 15mm
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	8A
Switched voltage	max 250V AC, max 30V DC
Relay variant	miniature
Coil resistance	655Ω
Operate time	15ms
Release time	5ms
Coil power consumption	220mW
Relay series	G6RN
Coil current	18.3mA
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	8A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.364.89

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	£ 1.859
5+	£ 1.434
10+	£ 1.365
20+	£ 1.319
50+	£ 1.271

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 15
3 workdays	> 2000
