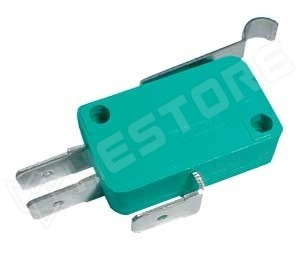

MSW 02 ON - (ON)

Mikrokapcsoló, 250 V AC / 10 A

RoHS	no
Operating temperature	-25...80°C
Body dimensions	28x10.3x16mm
Leads	connector
Min. insulation resistance	100MΩ
IP rating	IP40
Type of switch	microswitch SNAP ACTION
Stable positions number	1-position
Switching method	ON-(ON)
Contacts configuration	SPDT
Switches features	görgőt szimuláló mechanizmussal
Operating Force	1.6N
Lever length	23mm
Max. contact resistance:	30mΩ
Electrical life	100000cycles
AC contacts rating @R	10A / 250V AC
Összes pozíciók száma	2

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.361.52

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	413 Ft
5+	258 Ft
10+	233 Ft
20+	219 Ft
50+	207 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 100000
