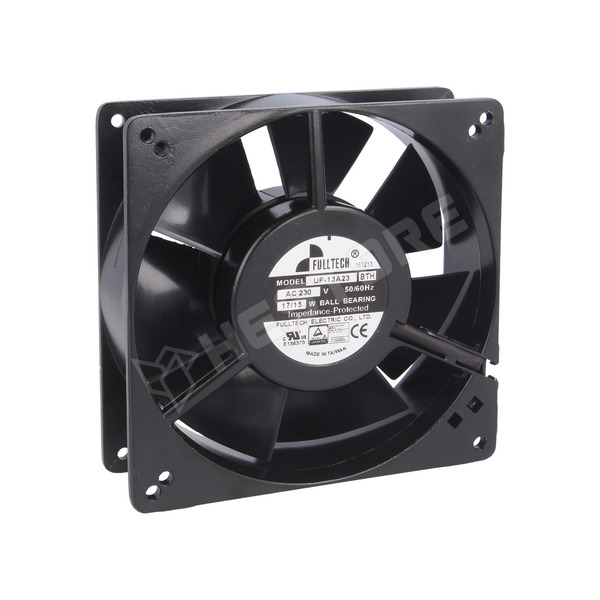

UF13A23BTH

Fan, AC, 230V AC, 127x127x38mm, ball bearing, 175.1m³/h, shaft

UF13A23BTH / Fan, AC, 230V AC, 127x127x38mm, ball bearing, 175.1m<sup>3</sup>/h, shaft (UF13A23BTH / FULLTECH)

Manufacturer partno	UF13A23BTH
RoHS	yes
Manufacturer	FULLTECH
Size	120x120x38
Type	DC
Frequency	50-60Hz
Voltage	24V
Weight	0.55kg
Operating temperature	-40...70°C
Supply voltage	230V AC
Enclosure material	Aluminium
Current rating	100mA
Leads	connectors, connector
Min. insulation resistance	100mΩ, 100MΩ
Type of fan	AC
Fan kind	shaft
Fan dimensions	127x127x38mm
Power consumption	17W
Fan efficiency	175.1m³/h
Noise level	46dBA
Bearing type	ball bearing
Rotational rate/speed	2700rpm
Static pressure	7.3mm H₂O
Kind of fan	shaft
Kind of Bearing	ball bearing

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.358.18

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	6 505 Ft
5+	6 079 Ft
10+	5 955 Ft
20+	5 841 Ft
50+	5 680 Ft
