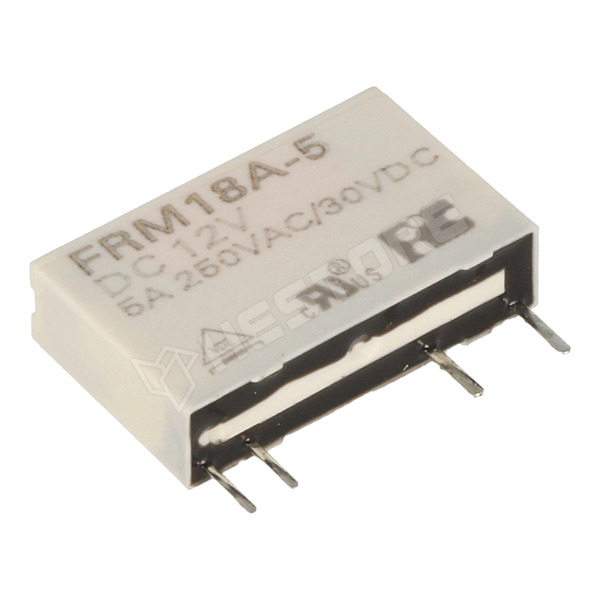

FRM18A-12V

Subminiature bistable relay 1-coil DPDT 2A 12VDC

RoHS	yes
Manufacturer	FORWARD IND.CO, FORWARD INDUSTRIAL CO.
Case	FRM18
Current	5A
Coil	12V DC
Contact	SPST
Voltage	250V AC
Weight	3g
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-40...70°C
Body dimensions	20 x 12.5 x 5mm
Mechanical durability	20000000cycles
DC contacts rating	5 A / 30 VDC
Contact material	silver alloy
Contacts configuration	SPST-NO
AC contacts rating	5 A / 250 VAC
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	5A
Switched voltage	max 250V AC, max 110V DC
Relay variant	interface
Coil resistance	1.2kΩ
Coil power consumption	120mW
Relay series	FRM18
Contact resistance	50mΩ
Coil current	10mA
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	5A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.353.48

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	825 Ft
5+	632 Ft
10+	601 Ft
20+	580 Ft
50+	559 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 10
3 workdays	> 1000
