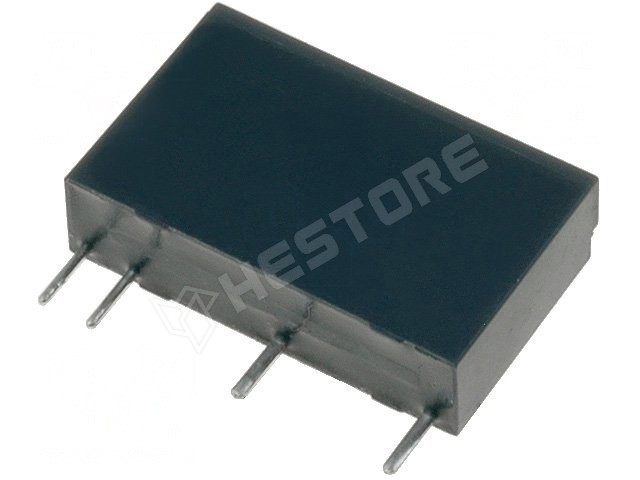

FRM18A-5V

Subminiature bistable relay 1-coil DPDT 2A 12VDC

Manufacturer partno	FRM18A-5 DC5V
RoHS	yes
Manufacturer	FORWARD IND.CO, FORWARD INDUSTRIAL CO.
Case	FRM18
Current	5A
Coil	5V DC
Contact	SPST
Voltage	250V AC
Weight	3g
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-40...70°C
Body dimensions	20 x 12.5 x 5mm
Mechanical durability	20000000cycles
DC contacts rating	5 A / 30 VDC
Contact material	silver alloy
Contacts configuration	SPST-NO
AC contacts rating	5 A / 250 VAC
Type of relay	electromagnetic
Rated coil voltage	5V DC
Contact current max.	5A
Switched voltage	max 250V AC, max 110V DC
Relay variant	interface
Coil resistance	208Ω
Coil power consumption	120mW
Relay series	FRM18
Contact resistance	50mΩ
Coil current	24mA
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	5A / 250V AC
