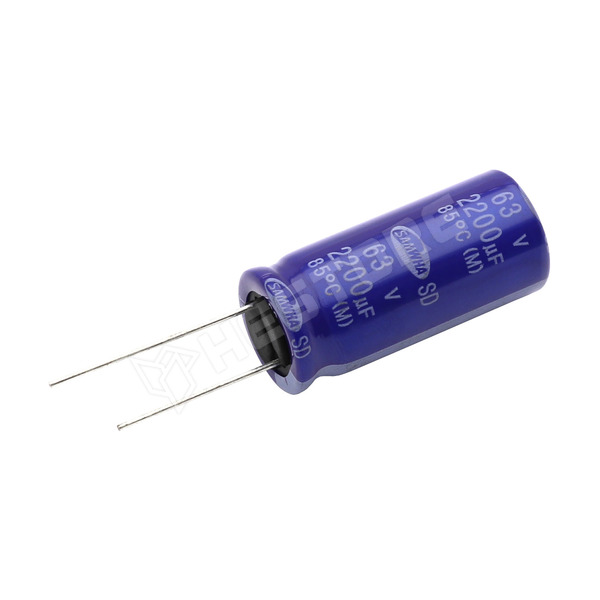

2200 uF / 63V 85°C

Name: 2200 uF / 63V 85°C
Brand: SAMWHA
SKU: 100.346.26
Availability: InStock

Capacitor, electrolytic, 2200µF, 63V, 7.5mm, Ø16 x 35mm, -40...85°C

SAMWHA: SD1J228M1635MBB
Kapacitás 2200µF
Üzemi feszültség 63V
Keramia test mérete 16 x 35mm
Kivezetési raszter 7.5mm
Tolerancia ±20%
Üzemi hőmérséklet -40...85°C

Manufacturer partno	SD1J228M1635MBB
RoHS	yes
Manufacturer	SAMWHA
Mounting	THT
Tolerance	±20%
Type of capacitor	electrolytic
Capacitance	2200µF
Operating voltage	63V, 63V DC
Terminal pitch	7.5mm
Operating temperature	-40...85°C
Body dimensions	Ø16 x 35mm, Ø16x35mm
Capacitors series	SD
Capacitor height tolerance	2mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.346.26

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	359 Ft
5+	225 Ft
10+	200 Ft
20+	187 Ft
50+	176 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 4000
