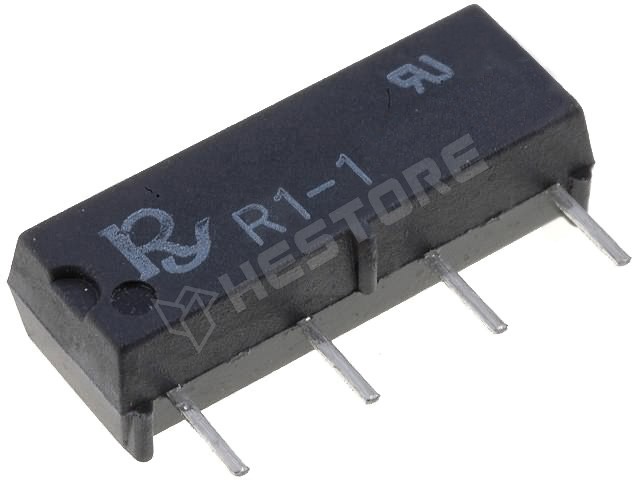

R1-1A2400

Reed relé, 24VDC

Manufacturer partno	R1-1A2400
RoHS	yes
Manufacturer	RAYEX ELECTRONIC, Recoy/RAYEX ELECTRONICS
Case	SIL
Current	1A
Coil	24V DC
Contact	SPST
Mounting	PCB
Terminal pitch	5.08mm
Operating temperature	-40...85°C
Body dimensions	19 x 5 x 7mm
Contact material	AgCdO
Contacts configuration	SPST-NO
Type of relay	reed
Rated coil voltage	24V DC
Contact current max.	1A
Switched voltage	max 250V DC
Coil resistance	2.15kΩ
Coil voltage min.	18V DC
Coil voltage max.	32V DC
Operate time	1ms
Release time	0.5ms
Coil power consumption	268mW
Relay series	R1
Contact resistance	150mΩ
Switching capacity	10VA

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.345.98

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 090 Ft
5+	912 Ft
10+	877 Ft
20+	853 Ft
50+	825 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 500
