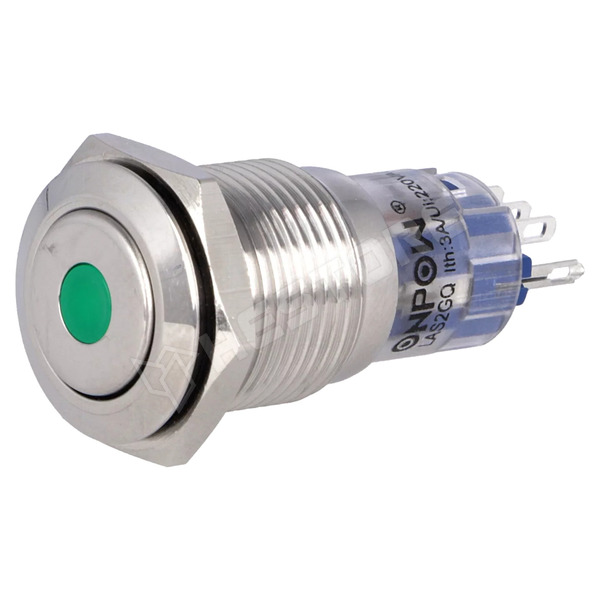

V16-21D-24G-S IP67

Push switch, vandal resistant, ON-ON, SPDT, Ø16mm, green

RoHS	yes
Manufacturer	ONPOW
Operating temperature	-20...55°C
Leads	for soldering
Illumination	point, LED 24V DC
IP rating	IP67
Mechanical durability	1000000 cycles
Test voltage	5kV
Type of switch	vandal resistant
Stable positions number	2-position
DC contacts rating	1 A / 24 VDC
Switching method	ON-ON
Contact material	silver alloy
Body material	stainless steel
Contacts configuration	SPDT
Mounting hole diameter	Ø16mm
AC contacts rating	3 A / 250 VAC
Operating Force	4N
Max. contact resistance:	50mΩ
Body colour	silver
Electrical life	200000 cycles
Backlight colour	green
Button shape	convex, smooth
DC contacts rating @R	1A / 24V DC
AC contacts rating @R	0.5A / 220V AC
Összes pozíciók száma	2
Light	point, LED 24V AC/DC
Korpusz anyaga	stainless steel
Ring shape	rounded
