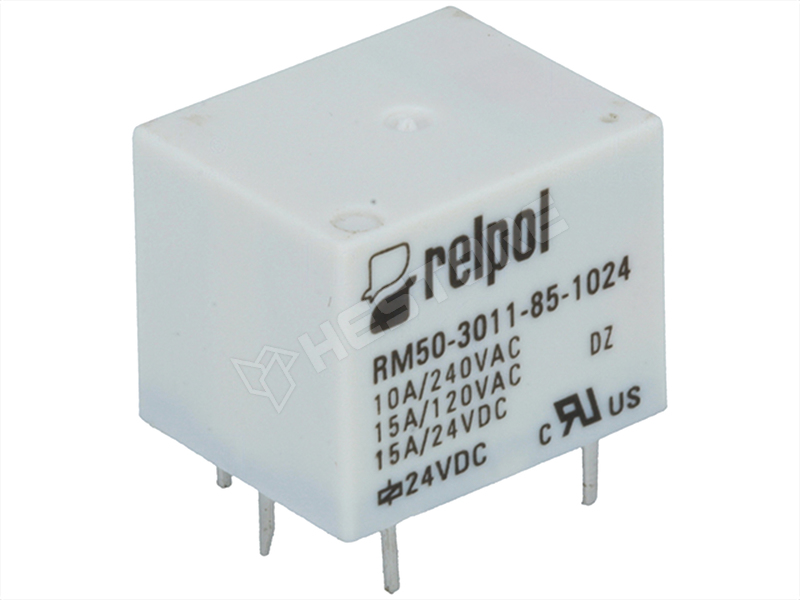

RM50-3011-85-1024
Relé 24V 10A/240V AC SPDT
A kép csak illusztráció!
| Manufacturer partno | RM50-3011-85-1024 |
|---|---|
| RoHS | yes |
| Manufacturer | RELPOL |
| Current | 10A |
| Coil | 24V DC |
| Contact | SPDT |
| Voltage | 250V AC |
| Mounting | PCB |
| Terminal pitch | 2mm |
| Operating temperature | -30...55°C |
| Body dimensions | 19 x 15.4 x 15.5mm |
| IP rating | IP64 |
| DC contacts rating | 15 A / 24 VDC |
| Contact material | AgSnO2 |
| Contacts configuration | SPDT |
| AC contacts rating | 10 A / 240 VAC |
| Type of relay | electromagnetic |
| Rated coil voltage | 24V DC |
| Contact current max. | 15A |
| Switched voltage | max 24V DC, max 277V AC |
| Relay variant | miniature |
| Coil resistance | 1.6kΩ |
| Coil voltage min. | 18V DC |
| Coil voltage max. | 31.2V DC |
| Operate time | 10ms |
| Release time | 5ms |
| Coil power consumption | 360mW |
| Relay series | RM50 |
| Contact resistance | 100mΩ |
| DC contacts rating @R | 15A / 24V DC |
| AC contacts rating @R | 10A / 240V AC |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.336.03
Quantity (pcs):
Unit price excl. VAT
| 1+ | 1 120 Ft |
|---|---|
| 5+ | 941 Ft |
| 10+ | 906 Ft |
| 20+ | 881 Ft |
| 50+ | 852 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 5 |
| 3 workdays | > 1000 |
Any questions?
Contact us now!Alternatives, similar/substitute products
SRD-24VDC-SL-C
Relay, SPDT, 24V DC, 10A / 250V AC, 10A / 30V DC
36.11.9.024.4011
Relé 24V 10A/250V AC SPDT
