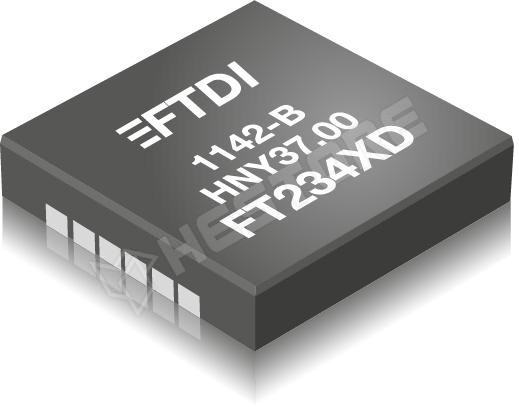

FT234XD-T

Name: FT234XD-T
Brand: FTDI
SKU: 100.331.71
Availability: InStock

USB/UART CHIP

Az integrált áramkör típusa Interfész IC
Interfész USB - basic UART
Adatátvitel sebessége 3Mbps
Pinek száma CBUS 4
Burkolat DFN12
Szerelés SMD
Üzemi hőmérséklet -40...85°C
Áramfelvét 8mA
Integrált áramkör tulajdonságai:2kB belső MTP ROM memória, konfigurálható CBUS I/O pin-ek, belső óra oszcillátor

RoHS	no
Manufacturer	FTDI
Case	DFN12
Mounting	SMD
Kind of package	in-tray
Operating temperature	-40...85°C
Type of integrated circuit	interface
Interface	USB - basic UART
Integrated circuit features	internal 2kB MTP ROM, configurable CBUS I/O pins, internal clock oscillator
Transmission rate	3Mbps
Supply current	8mA
Number of pins CBUS	4
Kind of package	in-tray

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.331.71
