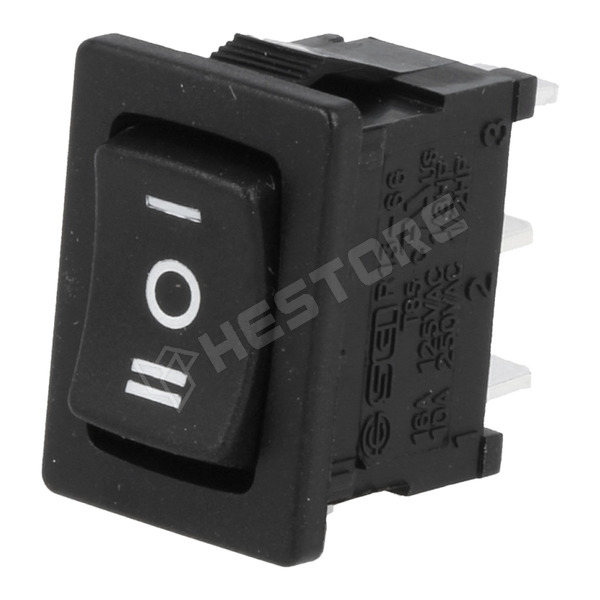

RS1366IBB7

Billenőkapcsoló, (ON)-OFF-(ON)

Manufacturer partno	R13-66I-02-BB-76D
RoHS	yes
Manufacturer	SCI
Operating temperature	-20...85°C
Body colour	black
Mounting hole diameter	19.4x13mm
Related items	R13-66A-29
Shape	rectangular
Leads	4.8x0.8mm connectors, 4,8x0,8mm connectors
Illumination	none
Type of switch	ROCKER
Stable positions number	1, 1-position
DC contacts rating	16 A / 12 VDC
Number of positions	3
Switching method	(ON)-OFF-(ON)
Body material	polyamide
Contacts configuration	SP3T
Mounting hole diameter	19.4x13mm
AC contacts rating	10 A / 250 VAC
Max. contact resistance:	50mΩ
Flammability rating	UL94V-2
Electrical life	6000cycles
Actuator colour	black
Button marking	--O=, I-O-II
Manufacturer series	R13-66-AC
Backlight colour	none
Panel thickness	max. 3mm
AC contacts rating @R	10A / 250V AC
Összes pozíciók száma	3
Light	none
Korpusz anyaga	polyamide

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.329.69

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	795 Ft
5+	603 Ft
10+	572 Ft
20+	552 Ft
50+	532 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
