EADIP203G-4NLED

Name: EADIP203G-4NLED
Brand: ELECTRONIC ASSEMBLY
SKU: 100.328.24
Availability: OutOfStock

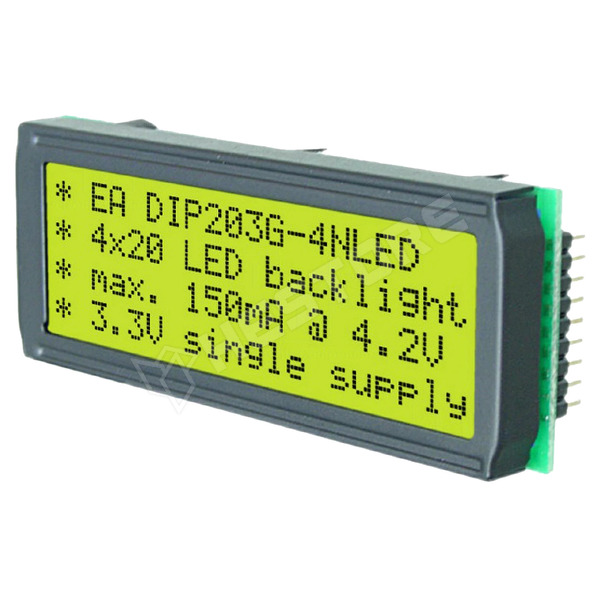

Alphanumeric LCD module, STN positive, 20x4, green-yellow, SPI

LCD module 4×20 3.73mm Y/G LED BL 68×27mm SPI
Dimensions : 68.0 × 26.8 × 10.8 mm
Display Format : 20×4
Display Technology : DIP module
MPU Interface : 8/4bit, serial, SPI
IC Controller/Driver : SSD1803 (HD44780)
Operation Temperature : -20 .. +70°C
Display Type : transflective
Viewing Area (WxH) : 61.0 × 19.0 mm
LCD Color : STN/yellow-green
Display Mode : positive
Character Set : eng/eur
Power Supply : 3.3 V
Backlight : LED yellow-green

Manufacturer partno	EA DIP203G-4NLED
RoHS	no
Manufacturer	ELECTRONIC ASSEMBLY
Number of pins	18
Supply voltage	2.7...3.45V DC
Interface	8bit BUS
Contacts pitch	2.54mm
Type of pin configuration	2x9
Dimensions	68x26.8mm
Type of display	LCD
Display technology	STN Positive
Number of characters (columns x lines)	20x4
Window dimensions (H x W)	61x19mm
Illumination	LED
Character width	2.335mm
Digit height	3.745mm
Backlight colour	yellow-green, green-yellow
Kind of controller	SSD1803
Kind of display	alphanumeric
Supported character set	Europe, Cyrillic, Japanese

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.328.24

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	15 447 Ft
5+	14 910 Ft
10+	14 636 Ft
20+	14 372 Ft
50+	13 985 Ft
