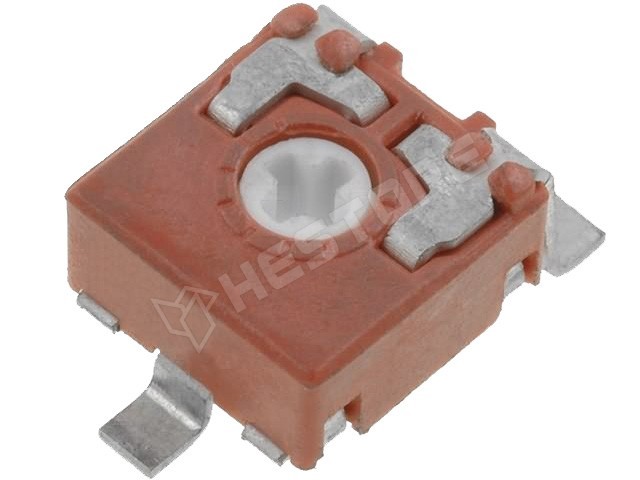

CA6V-SMD 10K

Trimmer potenciométer - 6 mm-es

RoHS	yes
Manufacturer	ACP
Case	CA6V-SMD
Power	100mW
Resistance	10kΩ
Characteristics	linear
Torque	<2Ncm
Mounting	SMD
Tolerance	±20%
Kind of package	bag
Operating temperature	-25...70°C
Body dimensions	6.5 x 6.5 x 3.6mm, 6.5x6.5x3.6mm
Max. operating voltage	100V DC
Type of potentiometer	mounting, single turn
Track material	carbon
Potentiometer standard	6mm
Mechanical durability	1000cycles
Mechanical rotation angle	235 ±10°
Electrical rotation angle	215 ±20°
Kind of potentiometer	single turn
Kind of package	bag

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.324.08

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	161 Ft
5+	100 Ft
10+	78,49 Ft
20+	66,99 Ft
50+	59,19 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 7500
