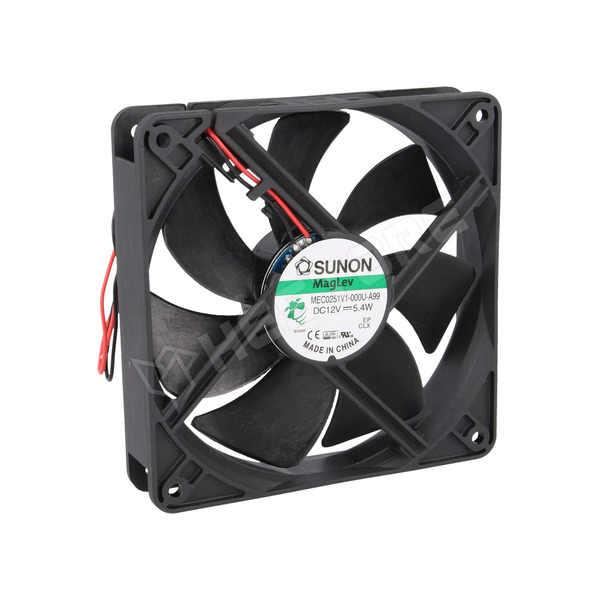

MEC0251V1-A99

Fan, DC, 12V DC, 120x120x25mm, Vapo, 183.8m³/h, shaft, axial

MEC0251V1-A99 / Fan, DC, 12V DC, 120x120x25mm, Vapo, 183.8m<sup>3</sup>/h, shaft, axial (MEC0251V1-000U-A99 / SUNON)

Manufacturer partno	MEC0251V1-000U-A99
RoHS	yes
Manufacturer	SUNON
Size	120x120x25
Type	DC
Voltage	12V
Weight	157g
Operating voltage	6...13.8V
Operating temperature	-10...70°C
Supply voltage	12V DC
Enclosure material	thermoplastic
Current rating	0.451A
Leads	2 leads
Min. insulation resistance	10MΩ
IP rating	A
Flammability rating	UL94V-0
Wire size	24AWG
Cable length	330mm
Type of fan	DC
Fan kind	shaft
Fan dimensions	120x120x25mm
Power consumption	5.4W
Fan efficiency	183.8m³/h
Noise level	44.5dBA
Bearing type	Vapo
Rotational rate/speed	3100 (±10%)rpm
Current and power consumption tolerance	±15%
Impeller material	thermoplastic
Static pressure	7.11mm H₂O
Fan motor	brushless DC
Additional functions	Autorestart
Kind of fan	axial, shaft
Kind of Bearing	Vapo

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.322.56

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 698 Ft
5+	2 429 Ft
10+	2 367 Ft
20+	2 315 Ft
50+	2 248 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 5000
