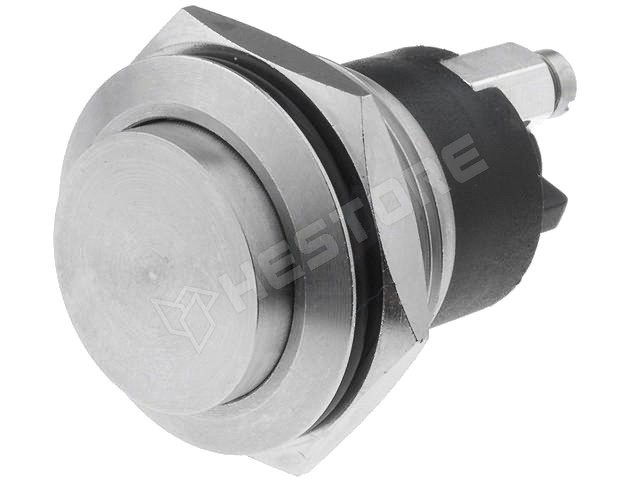

MP-0037/2 OFF-(ON)

Nyomógomb, vandálbiztos, 19,2mm IP68

Manufacturer partno	MP0037/2
RoHS	no
Manufacturer	BULGIN
Operating temperature	-20...70°C
Contact plating	silver plated
Leads	screw terminals
IP rating	IP68
Mechanical durability	1000000 cycles
Type of switch	vandal resistant
Stable positions number	1-position
DC contacts rating	1 A / 50 VDC
Switching method	OFF-(ON)
Body material	stainless steel
Contacts configuration	SPST, SPST-NO
Mounting hole diameter	Ø19mm
AC contacts rating	1 A / 50 VAC
Operating Force	7.5N
Max. contact resistance:	10MΩ, 10mΩ
Body colour	silver
Electrical life	30000cycles, 35000ciklus
Actuator colour	silver
Contact current max.	1A
Switched voltage	max 50V AC, max 50V DC
Manufacturer series	MP00
Backlight colour	none
Panel thickness	max 4mm
Button shape	prominent
DC contacts rating @R	1A / 50V DC
AC contacts rating @R	1A / 50V AC
Összes pozíciók száma	2
Light	none
Korpusz anyaga	stainless steel

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.316.21

Add to favorites

Quantity (pcs):

Packing:
25 pcs / tray

Unit price excl. VAT

1+	7 451 Ft
5+	6 986 Ft
10+	6 846 Ft
25+	6 717 Ft
50+	6 533 Ft
