MEC0382V1-A99

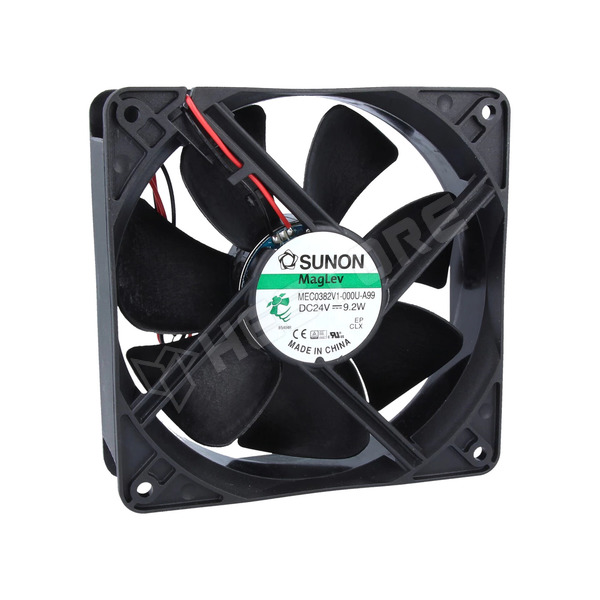

Fan, DC, 24V DC, 120x120x38mm, Vapo, 234.4m3/h, shaft
MEC0382V1-A99 / Fan, DC, 24V DC, 120x120x38mm, Vapo, 234.4m<sup>3</sup>/h, shaft (MEC0382V1-000U-A99 / SUNON)
Manufacturer partno MEC0382V1-000U-A99
RoHS yes
Manufacturer SUNON
Size 120x120x38
Type DC
Voltage 24V
Weight 218g
Operating voltage 10...27.6V
Operating temperature -10...70°C
Supply voltage 24V DC
Enclosure material thermoplastic
Current rating 0.383A
Leads 2 leads
Min. insulation resistance 10MΩ
IP rating A
Flammability rating UL94V-0
Wire size 24AWG
Cable length 330mm
Type of fan DC
Fan kind shaft
Fan dimensions 120x120x38mm
Power consumption 9.2W
Fan efficiency 234.4m3/h
Noise level 48dBA
Bearing type Vapo
Rotational rate/speed 3100 (±10%)rpm
Current and power consumption tolerance ±15%
Impeller material thermoplastic
Static pressure 9.14mm H2O
Fan motor brushless DC
Additional functions Autorestart
Kind of fan shaft
Kind of Bearing Vapo
