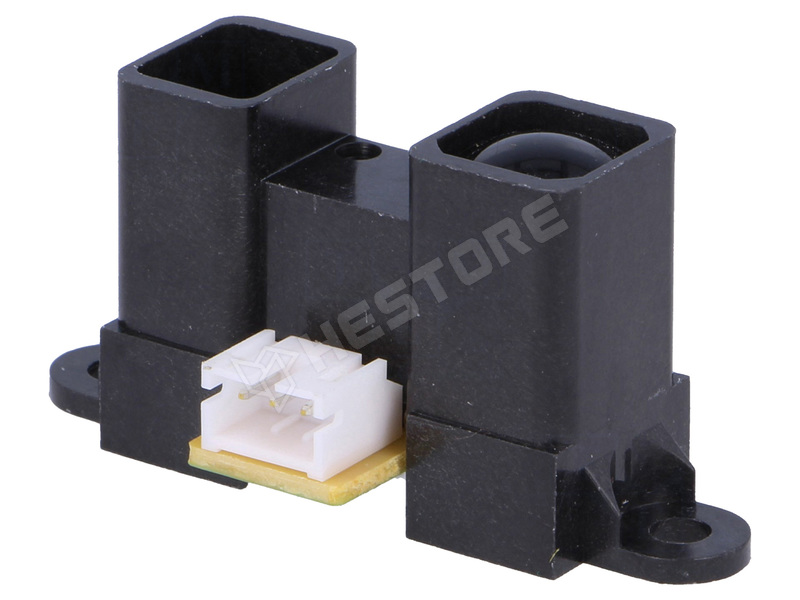

GP2Y0A02YK0F
Infrared sensor, 20-150 cm
SENSOR, DISTANCE, ANALOGUE O/P
SVHC:No SVHC (15-Dec-2010)
Detecting Distance: 20cm to 150cm
External Depth: 18.9mm
External Length / Height: 13.5mm
External Width: 44.5mm
Forward Current If(AV): 50mA
Operating Current DC: 50mA
Operating Temperature Range: -10°C to +60°C
Output Type: Analogue
Supply Voltage Max: 5.5VDC
Supply Voltage Min: 4.5VDC
Voltage Rating VDC: 7V
Voltage Vf Typ: 5.5V
| RoHS |
yes |
| Manufacturer |
SHARP |
| Operating temperature |
-10...60°C |
| Supply voltage |
-0.3...7V DC |
| Related items |
PHR-3, SPH-200BK26 |
| Type of sensor |
photoelectric |
| Max. operating current |
50mA |
| Body material |
Plastic, plastic |
| Connection |
S3B-PH |
| Output configuration |
analogue |
| Operation mode |
reflexiós |
| Range |
200...1500mm |
| Korpusz anyaga |
plastic |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Quantity (pcs):
Unit price excl. VAT
| 1+ |
2 620 Ft
|
| 5+ |
2 354 Ft
|
| 10+ |
2 293 Ft
|
| 20+ |
2 243 Ft
|
| 50+ |
2 178 Ft
|
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click

icon on top menu.
| Availability |
Qu. |
| In stock |
> 5 |
| 3 workdays |
> 450 |
| 10-15 workdays |
> 200 |
