Main category » Capacitors » Motor capacitors »

40uF 425/475VAC

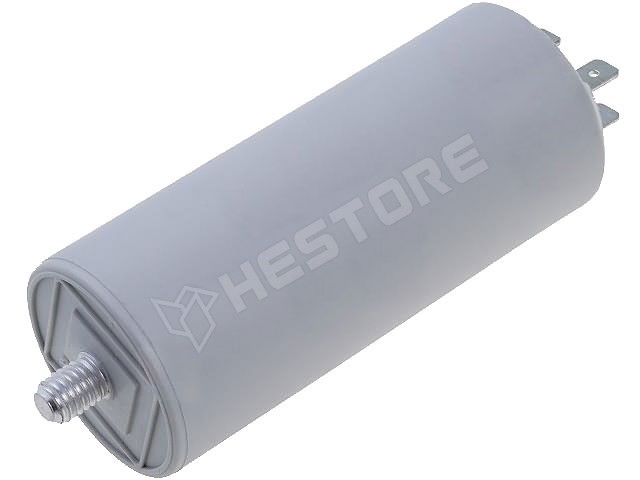

Motor capacitor, motors, run, 40µF, 425V AC, Ø45x92mm, 6,3mm connectors

Manufacturer partno	4.16.10.29.64
Manufacturer	DUCATI ENERGIA
Mounting	M8 screw
Tolerance	±5%
Type of capacitor	polypropylene (PP)
Capacitance	40µF
Operating voltage	425V AC
Operating temperature	-25...85°C
Body dimensions	Ø45x92mm
Service life	10000h
Capacitor application	motors, run
Leads	6,3mm connectors

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.300.71

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 236 Ft
5+	1 985 Ft
10+	1 931 Ft
20+	1 887 Ft
50+	1 831 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 500
