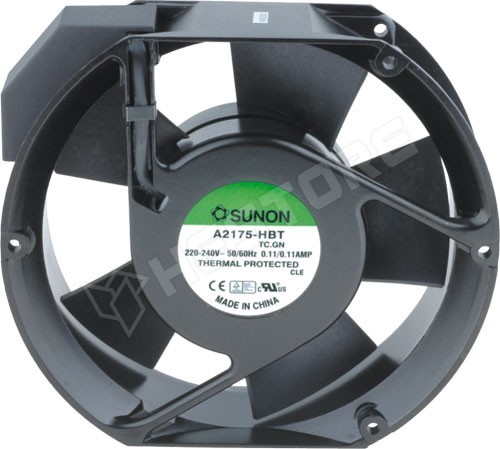

A2175HBT.T.

Fan, AC, 230V AC, 171x151x51mm, ball bearing, 302 (±10%)m³/h, shaft

A2175HBT.T. / Fan, AC, 230V AC, 171x151x51mm, ball bearing, 302 (±10%)m<sup>3</sup>/h, shaft (A2175HBT.T.GN / SUNON)

Manufacturer partno	A2175HBT.T.GN
RoHS	yes
Manufacturer	SUNON
Size	172x151x51
Type	AC
Frequency	50Hz
Voltage	230V
Weight	942g
Operating temperature	-10...70°C
Supply voltage	230V AC
Enclosure material	Aluminium
Current rating	250mA
Leads	2.8x0.3mm connectors, 2,8x0,3mm connectors
Min. insulation resistance	500MΩ
IP rating	B
Flammability rating	UL94V-0
Type of fan	AC
Fan kind	shaft
Fan dimensions	171x151x51mm
Power consumption	39W
Fan efficiency	302 (±10%)m³/h
Noise level	52dBA
Bearing type	ball bearing
Rotational rate/speed	2600rpm
Current and power consumption tolerance	±15%
Impeller material	thermoplastic
Static pressure	9.65mm H₂O
Fan motor	shaded-pole motor
Kind of fan	shaft
Kind of Bearing	ball bearing

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.298.29

Add to favorites

Quantity (pcs):

Packing:
10 pcs / carton

Unit price excl. VAT

1+	10 474 Ft
5+	9 885 Ft
10+	9 696 Ft
20+	9 517 Ft
50+	9 258 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 3000
