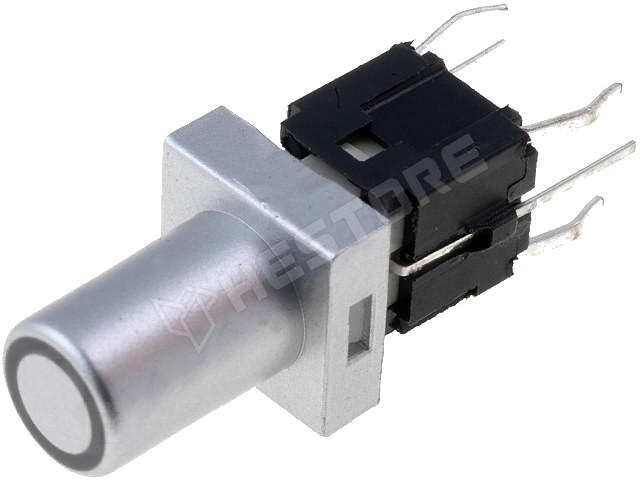

PB6149L-4-102

Nyomógomb hengeres NYÁK-hoz kék LED-del

RoHS	yes
Manufacturer	HIGHLY
Case	PB
Mounting	THT
Terminal pitch	5.08x5.08mm
Operating temperature	-20...70°C
Body dimensions	7.5 x 7.5mm, 7.5x7.5mm
Leads	straight, for PCB
Illumination	LED
Min. insulation resistance	100mΩ, 100MΩ
Type of switch	microswitch, keypad
Stable positions number	1-position
DC contacts rating	0.05 A / 12 VDC
Switching method	OFF-(ON)
Contacts configuration	SPST-NO
Operating Force	1.6N
Max. contact resistance:	100mΩ
Electrical life	300000cycles
Actuator colour	silver
Button height	18mm
Button shape	round
Manufacturer series	PB614
Backlight colour	blue
DC contacts rating @R	0.05A / 12V DC
Összes pozíciók száma	2
Light	LED

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.294.97

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	745 Ft
5+	564 Ft
10+	534 Ft
20+	515 Ft
50+	495 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 15
3 workdays	> 1000
