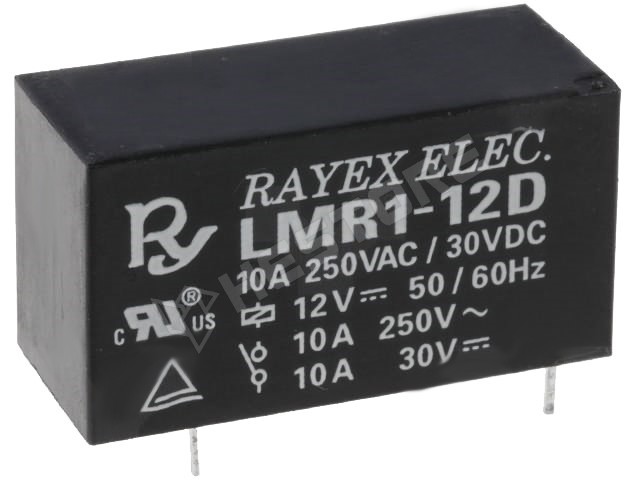

LMR1-12D

Relé 12VDC, 12A/250VAC, 1 ÁK

Manufacturer partno	LMR1-12D
RoHS	yes
Manufacturer	RAYEX ELECTRONIC, Recoy/RAYEX ELECTRONICS
Case	FTRH1
Current	10A
Coil	12V DC
Contact	SPDT
Voltage	250AC
Mounting	PCB
Terminal pitch	3.5mm
Operating temperature	-40...80°C
Body dimensions	29 x 12.5 x 15.5mm
DC contacts rating	12 A / 30 VDC
Contact material	AgCdO
Contacts configuration	SPDT
AC contacts rating	12 A / 250 VAC
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	12A
Switched voltage	max 250V AC, max 30V DC
Relay variant	miniature
Coil resistance	270Ω
Operate time	15ms
Release time	10ms
Coil power consumption	530mW
Relay series	LMR1
Contact resistance	100mΩ
DC contacts rating @R	12A / 30V DC
AC contacts rating @R	12A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.294.68

Add to favorites

Quantity (pcs):

Packing:
25 pcs / tube

Unit price excl. VAT

1+	881 Ft
5+	686 Ft
10+	654 Ft
25+	632 Ft
50+	610 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
3 workdays	> 350
