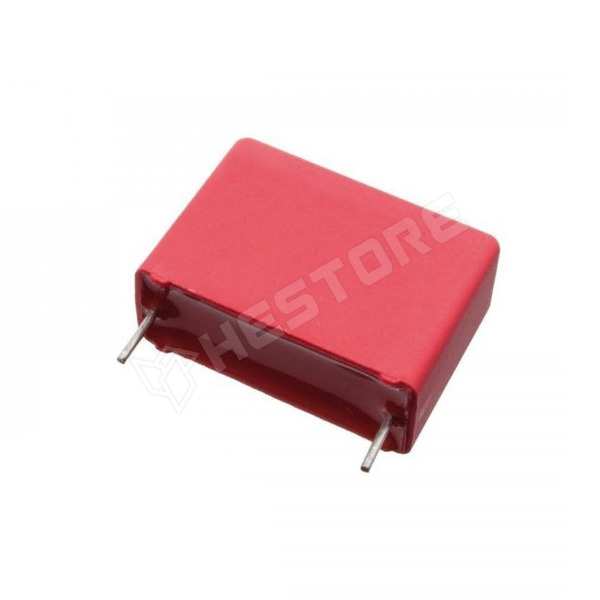

1 uF / 630V

Fóliakondenzátor, MKT, RM27,5

RoHS	no
Manufacturer	WIMA
Mounting	THT
Tolerance	±10%, ±20%
Type of capacitor	polypropylene (PP), poliészter
Capacitance	1µF
Operating voltage	630V DC, 400V AC
Terminal pitch	27.5mm
Operating temperature	-55...100°C
Body dimensions	11 x 21 x 31.5mm, 13x24x31.5mm
Enclosure material	self-extinguishing, UL94V-0
Climate class	55/100/56
Capacitors series	MKT
Max. operating voltage	630V DC, 280V AC
Capacitor application	filtering, energy storage, decoupling, high frequency circuits, timing circuits, oscillating circuits
Leads dimensions	len. 6mm
Capacitors features	increased service life capacitors, low ESR resistance value
Pulse resistance	13V/μs, 150V/μs
Capacitance - nF	1000nF

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.292.92

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	770 Ft
5+	579 Ft
10+	549 Ft
20+	529 Ft
50+	509 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
3 workdays	> 2000
