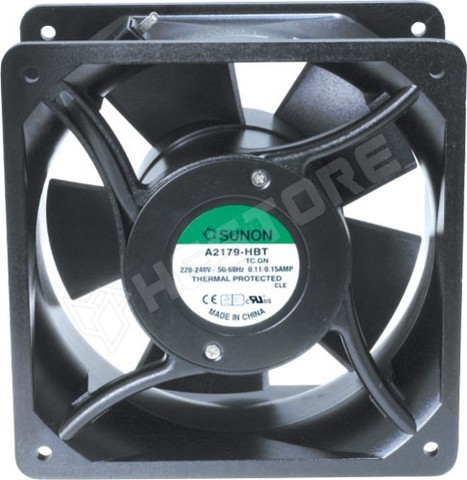

A2179HBT.TC.GN

Fan, AC, 230V AC, 176x176x89mm, ball bearing, 535 (±10%)m³/h, shaft

A2179HBT.TC.GN / Fan, AC, 230V AC, 176x176x89mm, ball bearing, 535 (±10%)m<sup>3</sup>/h, shaft (SUNON)

RoHS	yes
Manufacturer	SUNON
Size	176x176x89
Type	AC
Frequency	50Hz
Voltage	230V
Operating temperature	-10...70°C
Supply voltage	230V AC
Enclosure material	Aluminium
Current rating	110mA
Leads	2.8x0.3mm connectors, 2,8x0,3mm connectors
Min. insulation resistance	500MΩ
IP rating	B
Flammability rating	UL94V-0
Type of fan	AC
Fan kind	shaft
Fan dimensions	176x176x89mm
Power consumption	23W
Fan efficiency	535 (±10%)m³/h
Noise level	62dBA
Bearing type	ball bearing
Rotational rate/speed	2800rpm
Current and power consumption tolerance	±15%
Impeller material	thermoplastic
Static pressure	16.5mm H₂O
Fan motor	Alveolate type motor with running capacitor
Kind of fan	shaft
Kind of Bearing	ball bearing
