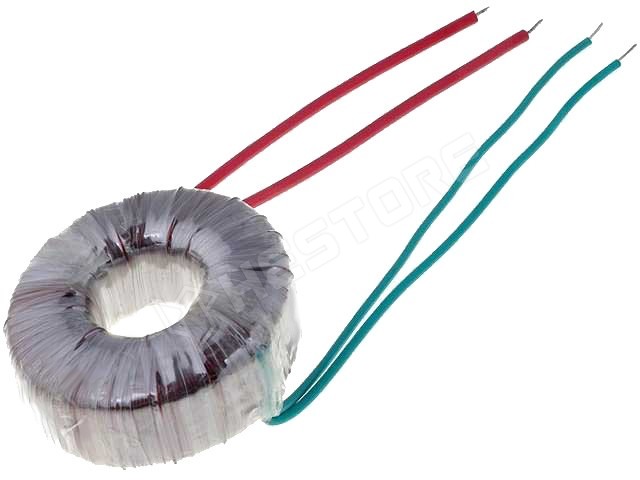

TST035W-17V
Toroid transzformátor 35VA 17V/2,05A
Teljesítmény: 35 VA
Primer feszültség: 230 V AC
Szekunder feszültség: 17 V
Szekunder tekercs árama: 2,05 A
Kivezetések: 150 mm-es vezetékek
Szigetelési osztály: IP00, II
Hőállósági osztály: Ta40B
Szabvány megfelelőség: PN-EN61558
Elektromos szigetelés szilárdsága: 4 kV/60s
Méretek:(lásd a 2-es képet)
- átmérő (D): 75 mm
- magasság (H): 32 mm
- szerelőfurat átmérő (d): 5,2 mm
Tömeg : 0,6 kg
| RoHS |
yes |
| Manufacturer |
INDEL |
| Diameter |
75mm |
| Power |
35VA |
| Weight |
0.6kg |
| Leads |
cables |
| IP rating |
IP00, II |
| Type of transformer |
toroidal |
| Primary voltage |
230V AC |
| Secondary voltage 1 |
17V |
| Electrical insulation strength |
4kV/60s |
| Conform to the norm |
PN-EN 61558 |
| Thermal class |
Ta40B |
| Secondary winding current 1 |
2.05A |
| Cable length |
150mm |
| Height |
32mm |
| Panel cutout diameter |
4.2mm |
| Kit contents |
lid, rubber washer x2 |
