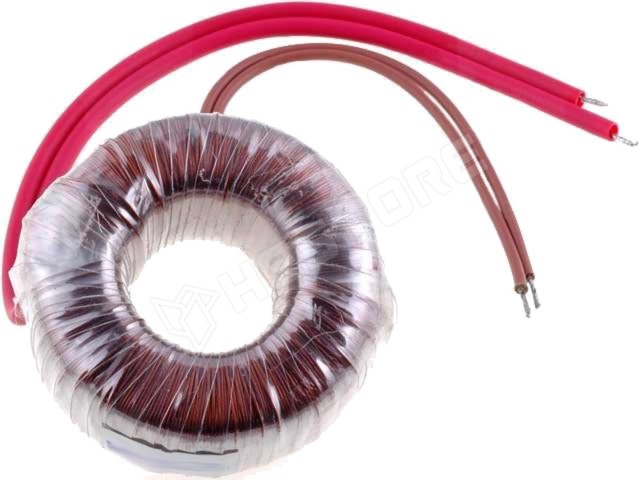

TST010W-12V

Name: TST010W-12V
Brand: INDEL
SKU: 100.288.10
Availability: InStock

Toroid transzformátor 10VA 12V/0,83A

Teljesítmény: 10 VA
Primer feszültség: 230 V AC
Szekunder feszültség: 12 V
Szekunder tekercs árama: 0,83 A
Kivezetések: 150 mm-es vezetékek
Szigetelési osztály: IP00, II
Hőállósági osztály: Ta40B
Szabvány megfelelőség: PN-EN61558
Elektromos szigetelés szilárdsága: 4 kV/60s
Méretek:(lásd a 2-es képet)
- átmérő (D): 57 mm
- magasság (H): 28 mm
- szerelőfurat átmérő (d): 5,2 mm
Tömeg : 0,3 kg

RoHS	yes
Manufacturer	INDEL
Diameter	57mm
Power	10VA
Weight	0.3kg
Leads	cables
IP rating	IP00, II
Type of transformer	toroidal
Primary voltage	230V AC
Secondary voltage 1	12V
Electrical insulation strength	4kV/60s
Conform to the norm	PN-EN 61558
Thermal class	Ta40B
Secondary winding current 1	0.83A
Cable length	150mm
Height	28mm
Panel cutout diameter	4.2mm
Kit contents	lid, rubber washer x2
