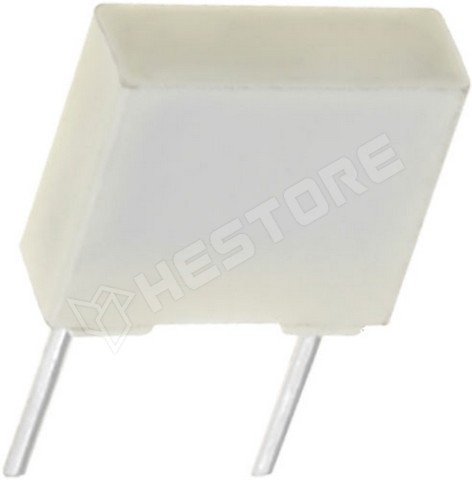

47 nF / 100V

Fóliakondenzátor RM5

RoHS	yes
Manufacturer	KEMET
Mounting	THT
Tolerance	±10%
Type of capacitor	poliészter
Capacitance	47nF
Operating voltage	100V DC
Terminal pitch	5mm
Operating temperature	-55...105°C
Body dimensions	2.5 x 6.5 x 7.2mm, 2.5x6.5x7.2mm
Climate class	55/100/56 IEC60068-1, 55/100/56 IEC 60068-1
Capacitors series	R82
Max. operating voltage	100V DC, 63V AC
Conform to the norm	AEC-Q200
Pulse resistance	200V/μs
Lead length	4mm
Kind of package	tape
