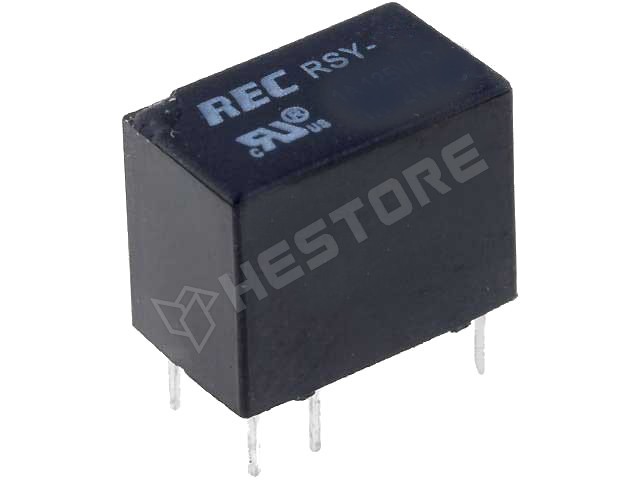

RSY-12 (K5V1 12VDC)

Relay, SPDT, 12V DC, 0.5A / 125V AC, 1A / 24V DC

RoHS	yes
Manufacturer	RAYEX ELECTRONIC, Recoy/RAYEX ELECTRONICS
Mounting	PCB
Terminal pitch	2.54mm
Operating temperature	-25...55°C
Body dimensions	12.4 x 7.4 x 9.9mm
Contact material	AgCdO
Contacts configuration	SPDT
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	1A
Switched voltage	max 125V AC, max 24V DC
Relay variant	subminiature
Coil resistance	960Ω
Operate time	4ms
Release time	3ms
Relay series	RSY
Contact resistance	100mΩ
Coil current	12.5mA
DC contacts rating @R	1A / 24V DC
AC contacts rating @R	0.5A / 125V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.284.03

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	683 Ft
10+	479 Ft
50+	458 Ft
100+	448 Ft
200+	440 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
