R13-507MA-RD

Name: R13-507MA-RD
Brand: SCI
SKU: 100.282.50
Availability: InStock

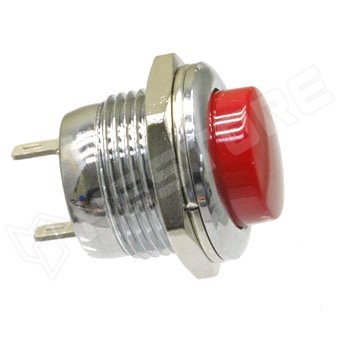

Push button, push-button, OFF-(ON), SPST-NO, for panel mounting, Ø16mm, 3A / 250V AC

SPST, 3A, 25V AC
D=16mm furatba
Beépítési mélység: 18mm (válltól a forrfül végéig)

RoHS	yes
Manufacturer	SCI
Type	push button
Mounting	for panel mounting
Operating temperature	-25...70°C
Leads	for soldering
Type of switch	push-button
Stable positions number	1-position
Switching method	OFF-(ON)
Body material	metal
Contacts configuration	SPST-NO
Mounting hole diameter	Ø16mm
AC contacts rating	3 A / 250 VAC
Max. contact resistance:	50mΩ
Electrical life	6000cycles
Actuator colour	red
Manufacturer series	R13-507
Panel thickness	max 6mm
Button shape	round, prominent
AC contacts rating @R	3A / 250V AC
Összes pozíciók száma	2
Light	none
Korpusz anyaga	metal
