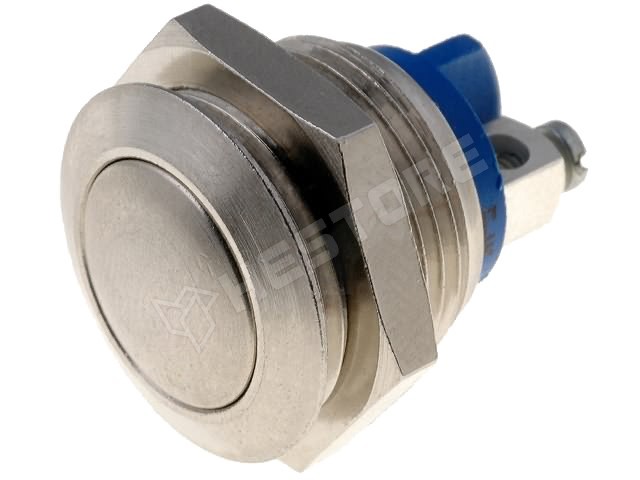

AV1630C900

Vandal resistant, OFF-(ON), SPST-NO, Ø16mm, 0.2A / 48V AC, 0.1A / 48V DC

RoHS	yes
Manufacturer	APEM
Series	AV
Operating temperature	-20...55°C
Body colour	silver
Mounting hole diameter	Ø16mm
Contact plating	silver plated
Leads	screw terminals
Min. insulation resistance	1GΩ
IP rating	IP65
Mechanical durability	1000000 cycles
Test voltage	2kV
Type of switch	vandal resistant
Stable positions number	1
Number of positions	2
Switching method	OFF-(ON)
Contact material	brass
Body material	brass, copper
Contacts configuration	SPST-NO
Mounting hole diameter	Ø16mm
Max. contact resistance:	50mΩ
Body colour	silver
Electrical life	100000 cycles
Button shape	convex
Panel thickness	max. 11mm
Body plating	nickel
DC contacts rating @R	0.1A / 48V DC
AC contacts rating @R	0.2A / 48V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.282.28

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	4 677 Ft
5+	4 326 Ft
10+	4 232 Ft
20+	4 148 Ft
50+	4 032 Ft
