ED 16112 O

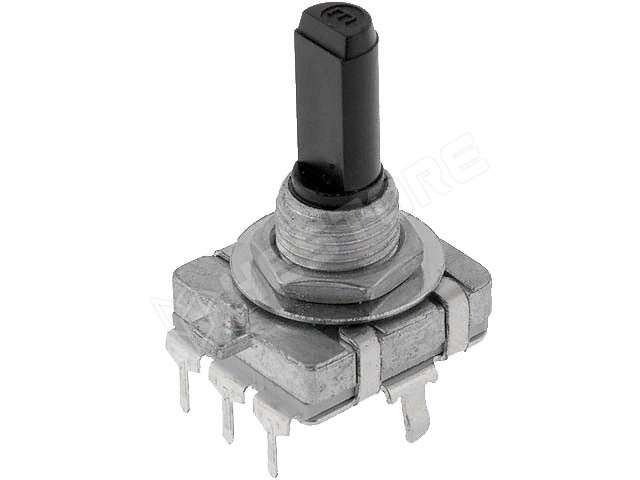

Rotary encoder 6mm, 24 pulse CTS
ED 16112 O / Rotary encoder 6mm, 24 pulse CTS (CTR)
Az érzékelő típúsa mechanikus enkóderek
Felbontás 24imp/ford
Tulajdonságok kimenet 2 bites, Gray-kódos, 6 mm-es tengely
Külső méretek 6.5 x 17.6 x 16mm
Max. üzemi feszültség 50V AC
Üzemi áram max. 500µA
Üzemi hőmérséklet -20...70°C
RoHS no
Manufacturer CTR
Mounting vertical
Operating temperature -20...70°C
Body dimensions 6.5 x 17.6 x 16mm
Max. operating voltage 50V AC
Shaft diameter 6mm
Shaft length 15mm
Thread length 5mm
Max. operating current 500µA
Resolution 24imp/revol.
Sensors features output in 2 bit Gray code, shaft 6 mm
Type of encoder incremental
Cut depth 1.5mm
Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.281.23
