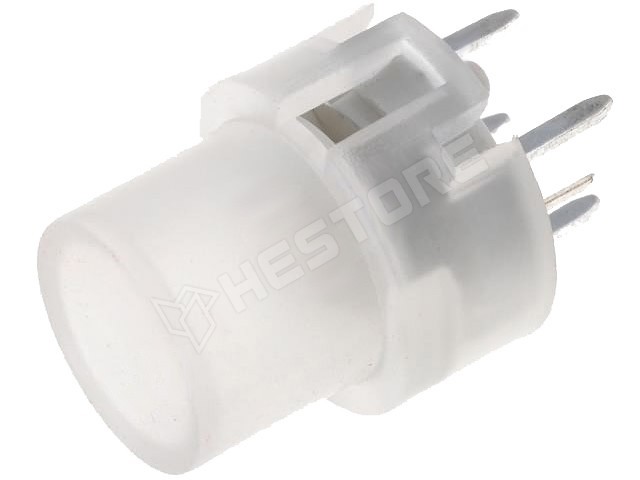

KS01-BL-13

Nyomógomb, kerek NYÁK-hoz LED piros/zöld

RoHS	yes
Manufacturer	HIGHLY
Case	KS01
Mounting	THT
Terminal pitch	5x5mm
Operating temperature	-20...60°C
Body dimensions	Ø12mm
Leads	straight, for PCB
Illumination	LED
Min. insulation resistance	100mΩ, 100MΩ
Type of switch	microswitch, keypad
Stable positions number	1-position
DC contacts rating	0.01 A / 35 VDC
Switching method	OFF-(ON)
Contacts configuration	SPST-NO
Switches features	color change by changing polarization
Operating Force	1.3N
Max. contact resistance:	30mΩ
Electrical life	100000cycles
Actuator colour	colourless
Button height	14.3mm
Button shape	round
Manufacturer series	KS01
Backlight colour	red/green
DC contacts rating @R	0.01A / 35V DC
Összes pozíciók száma	2
Light	LED

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.279.25

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	460 Ft
5+	287 Ft
10+	262 Ft
20+	247 Ft
50+	235 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
3 workdays	> 1000
