PT106052

Name: PT106052
Brand: HESTORE
SKU: 100.275.28
Availability: InStock

Rezisztív érzékelő

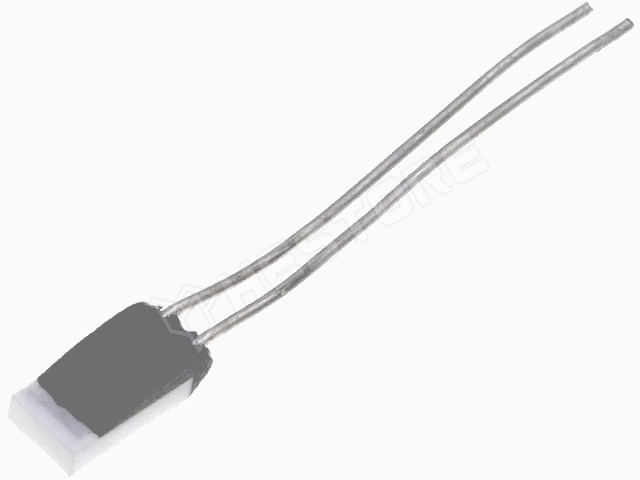

PT1000 hőmérs. érzékelő
Névleges ellenállás 0°C-on: 1000 Ohm
Tűrés: "D" osztály (0,48%)
Hőtényező: 3850 ppm/°C
Működési tartomány: -50 ... +500 °C
Max. áram: 1 mA

RoHS	yes
Resistance	1kΩ
Tolerance	cl.B 0,12 %
Operating temperature	-50...500°C
Body dimensions	2 x 3 x 1mm
Temperature coefficient	3850ppm/°C
Leads dimensions	len. 10mm
Type of sensor	temperature
Kind of temperature sensor	Pt1000

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.275.28

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 095 Ft
5+	891 Ft
10+	855 Ft
20+	830 Ft
50+	802 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 350
