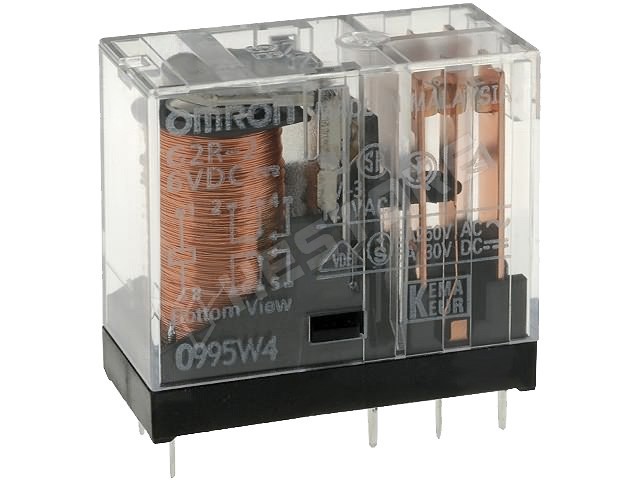

G2R-2-6DC

DPDT relé 5A DC6V 88,2mA

Manufacturer partno	G2R-2 6VDC
RoHS	yes
Manufacturer	OMRON
Current	5A
Coil	6V DC
Contact	DPDT
Voltage	380V AC
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-40...70°C
Body dimensions	29 x 13 x 25.5mm
Related items	PODST-3
Leads	for PCB
Contacts configuration	DPDT
Type of relay	electromagnetic
Rated coil voltage	6V DC
Contact current max.	5A
Switched voltage	max 125V DC, max 380V AC
Relay variant	monostable, miniature
Coil resistance	68Ω
Operate time	15ms
Release time	5ms
Relay series	G2R
Contact resistance	50mΩ
Coil current	88.2mA
Enclosure description	standard seal
DC contacts rating @R	5A / 30V DC
AC contacts rating @R	5A / 250V AC
