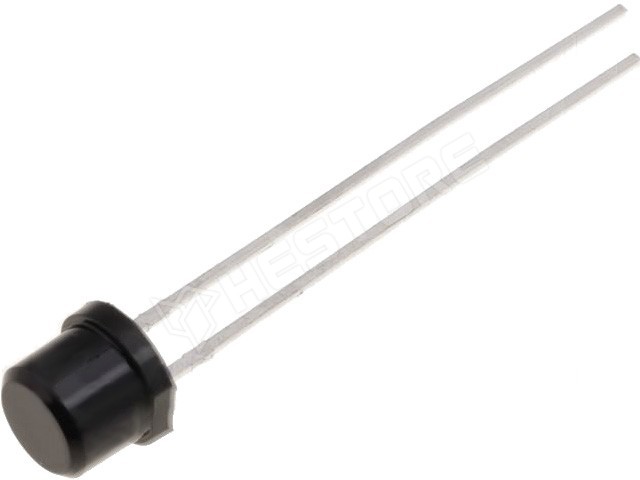

SFH203PFA

Name: SFH203PFA
Brand: OSRAM
SKU: 100.267.42
Availability: InStock

Foto dióda, 5mm, 850nm, 120°

Hullámhossz: 850nm
Nyílásszög: 120°
szűrős lencse

RoHS	yes
Manufacturer	OSRAM
Mounting	THT
Max. off-state voltage	50V
LED diameter	5mm
Front	flat
Wavelength	750-1100nm
Turn-on time	5ns
Turn-off time	5ns
Optical power	100mW
Type of photoelement	PIN IR photodiode
Viewing angle	75°
Wavelength of peak sensitivity	900nm
Active area	1mm²
Dark current	1nA
