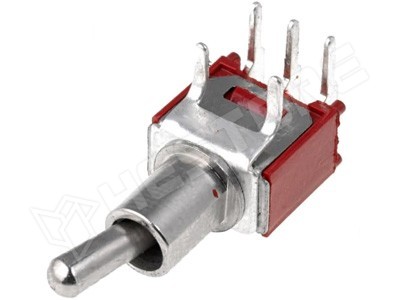

TSSM-1022-C3

Kapcsoló (nyelves, 1P, 1,5A/125V, M6, SPDT ON-ON)

RoHS	yes
Manufacturer	NINIGI
Case	TSSM102
Operating temperature	-55...65°C
Body dimensions	8.3 x 5.2 x 8.9mm, 8.3x5.2x8.9mm
Leads	for PCB, angled
Type of switch	toggle
Stable positions number	2-position
Number of positions	2
Switching method	ON-ON
Contacts configuration	SPDT
Mounting hole diameter	Ø5mm
AC contacts rating	1 A / 250 VAC
Max. contact resistance:	20mΩ
Toggle type	round
Knob height	5.4mm
Electrical life	20000cycles
AC contacts rating @R	1A / 250V AC
Összes pozíciók száma	2
Kind of toggle	round
