2x12V 4.5VA 230V

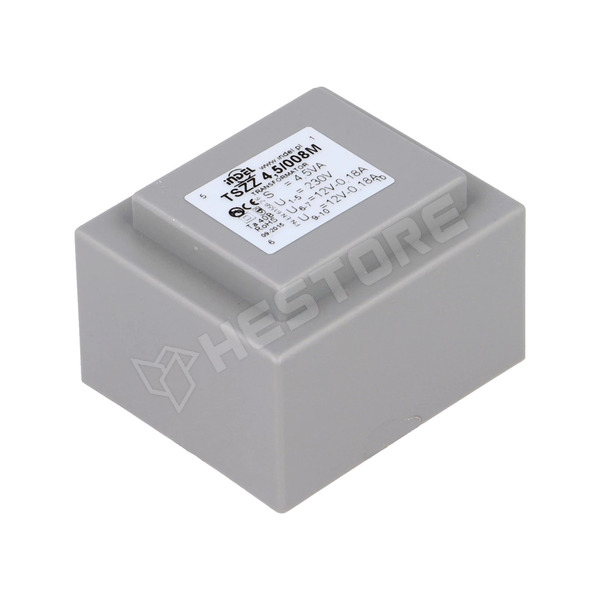

Transformer, encapsulated, 4.5VA, 230V AC, 2 x 12V, 2 x 0.18A PCB

Manufacturer partno	TSZZ4.5/008M
RoHS	yes
Manufacturer	INDEL
Voltage [V]	12
Secunder [pc]	2
Power [VA]	4
Core	EI38
Power	4.5VA
Weight	200g
Mounting	PCB
IP rating	IP00, II
Type of transformer	encapsulated
Primary voltage	230V AC
Secondary voltage 1	12V
Electrical insulation strength	4kV/60s
Conform to the norm	PN-EN 61558
Thermal class	Ta40B
Secondary winding terminals	6-7, 9-10
Primary winding terminals	1-5
A dimension	41.4mm
A1 dimension	29.7mm
B dimension	35mm
C dimension	28.3mm
Secondary winding current 1	0.18A
B1 dimension	25mm
C1 dimension	22.8mm
M dimension	25.1mm
P dimension	5mm
Secondary voltage 2	12V
Secondary winding current 2	0.18A

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.258.49

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 300 Ft
5+	2 080 Ft
10+	2 024 Ft
20+	1 978 Ft
50+	1 920 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 10
