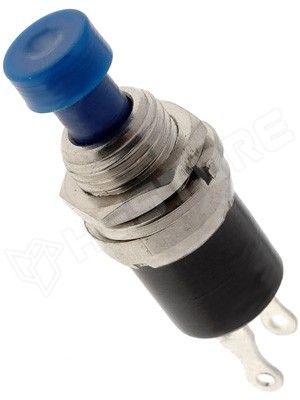

PS 10B BU

Name: PS 10B BU
Brand: NINIGI
SKU: 100.224.71
Availability: InStock

Nyomógomb, kék, záró

= T250A BLAU

RoHS	yes
Manufacturer	NINIGI
Case	T250A
Mounting	for panel mounting
Operating temperature	-25...70°C
Body dimensions	Ø9.2 x 28.5mm, Ø9.2x28.5mm
Leads	for soldering
Type of switch	push-button
Stable positions number	1-position
Switching method	OFF-(ON)
Body material	metal-plastic
Contacts configuration	SPST-NO
Mounting hole diameter	Ø7mm
AC contacts rating	1 A / 250 VAC
Max. contact resistance:	20mΩ
Electrical life	50000 cycles
Actuator colour	blue
Height above panel	12mm
Button shape	round, prominent
AC contacts rating @R	1A / 250V AC
Összes pozíciók száma	2
Light	none
Korpusz anyaga	metal-plastic

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.224.71
