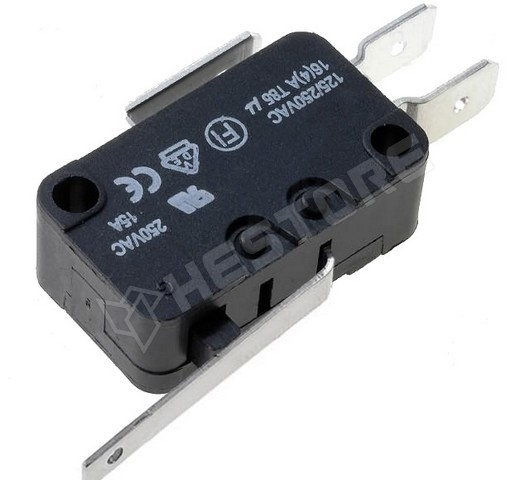

MS4

Mikrokapcsoló nyelvvel 250V/5A

RoHS	yes
Manufacturer	HIGHLY
Case	MS3
Operating temperature	-25...70°C
Body dimensions	27.8 x 10.3 x 18.8mm, 27.8x10.3x18.8mm
Leads	6,3x0,8mm connectors
Min. insulation resistance	100mΩ, 100MΩ
IP rating	IP40
Conform to the norm	IEC 1058-1
Type of switch	microswitch, microswitch SNAP ACTION
Stable positions number	1-position
Switching method	ON-(ON)
Contacts configuration	SPDT
Switches features	with lever
AC contacts rating	16 A / 250 VAC
Operating Force	2.5N
Lever length	26mm
Max. contact resistance:	15mΩ
Electrical life	100000cycles
AC contacts rating @R	14A / 250V AC
Összes pozíciók száma	2

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.220.44

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	568 Ft
5+	385 Ft
10+	358 Ft
20+	342 Ft
50+	327 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 350
