1x12V 10VA 230V

Transzformátor EI48-16,8

Manufacturer partno	44267
RoHS	yes
Manufacturer	MYRRA
Power	10VA
Mounting	PCB

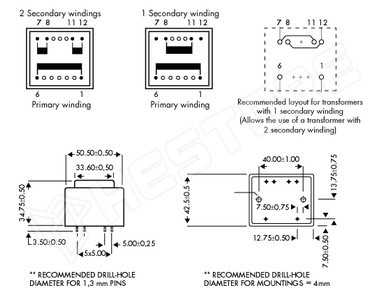

Body dimensions	50.5x42.5x34.75mm
Body dimensions	50.5x42.5x34.75mm
Type of transformer	encapsulated
Primary voltage	230V AC
Secondary voltage 1	12V
Electrical insulation strength	4kV/60s
Thermal class	T 50B
Secondary winding terminals	8-11
Primary winding terminals	1-6
Secondary winding current 1	833mA

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.213.44

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	5 128 Ft
5+	4 758 Ft
10+	4 656 Ft
20+	4 565 Ft
50+	4 438 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 500
