OS-TA-56A1A-C

Name: OS-TA-56A1A-C
Brand: OPTOSUPPLY
SKU: 100.203.07
Availability: InStock

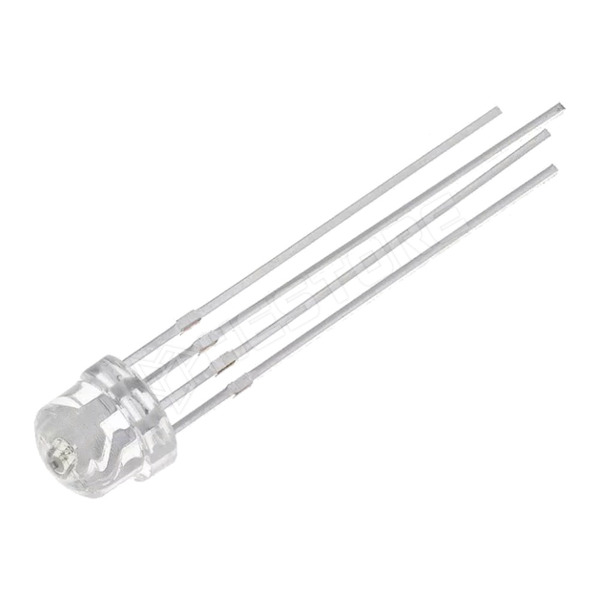

RGB LED 5mm 1900 mCd, 40°, Közös katódú

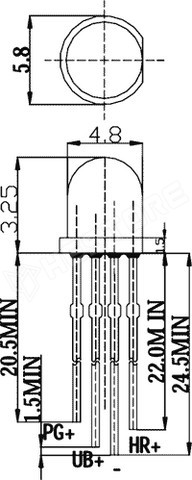

LED átmérő : 5 mm
Szín : R / G / B
Fényerő : 1900 mCd
Világítási szög : 140°
Hullámhossz : 640 / 525 / 470 nm
Lencse : átlátszó
Üzemi hőmérséklet : -30...80 °C
Közös katódos
Áram : 20 mA

RoHS	yes
Manufacturer	OPTOSUPPLY
Type of diode	LED
Mounting	THT
Operating voltage	1.8..2.4/2.8..4/2.8..4V
Terminal pitch	2.54mm
LED diameter	4.8mm
LED colour	RGB
Viewing angle	100°
Front	convex
LED lens	transparent
LED current	20mA
LED version	tricolour
Luminosity of red colour	330-750mcd
Luminosity of green colour	1120-2180mcd
Wavelength of red colour λd	635-645nm
Wavelength of green colour λd	520-530nm
Common electrode	cathode
Luminosity of blue colour	500-1120mcd
Wavelength of blue colour λd	465-475nm
