| Rend. szám: |
10025533 |
| Elérhető: |
2 db |
| Nettó ár: |
73 939 Ft |
| Bruttó ár: |
93 902 Ft |
| |
|
| |
| 2- |
89 993 Ft |
| 3- |
86 084 Ft |
| 4- |
82 174 Ft |
|
| Gyártó: |
MATRIX |
| Megjegyzés: |

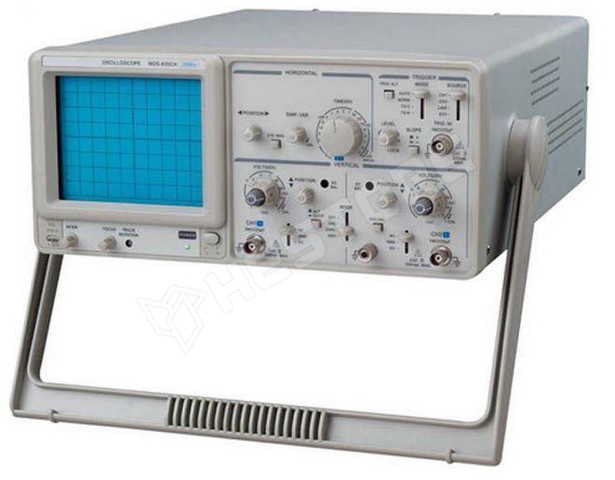

- two channels
- high brightness Toshiba CRT display
- Japan electronic encoder
- displays two waveforms at the same time
- TV signal triggering
- trigger level locking
- x10 time base gain
- high sensitivity 1 mV/div
- XY operation mode
- Z axis input
- CH1 channel output
- built-in 6-digit frequency meter (only models OS-MOS640 and OS-MOS640FG)
- delivered with two probes
- CRT display
- Screen size 104 x 84 mm
- Colour blue
- Acceleration voltage 2 kV
- Intensity and focus adjust. on front panel
- (potentiometers. INTEN and FOCUS)
- Vertical deflection 5 mV ~ 5 V/div
- Rise time 17,5 ns
- Input coupling AC, GND, DC
- Operating modes CH1, CH2, DUAL (ALT, CHOP), ADD
- Input impedance 1 M? / 30 pF
- Max. input voltage 400 V (AC + DC peak-peak)
- Horizontal deflection
- Time base 0,2ľs/div~0,5s/div (x10MAG;20ns)
- Accuracy ą3%(x10%;ą5%)
- Trigger
- Modes AUTO, NORM, TV-V, TV-H
- Slope +/- (positive-going or negative-going)
- X-Y mode
- Sensitivity 5 mV ~ 5 V/div
- Accuracy ą5%
- Bandwidth X axis: DC to 1 MHz
- Phase shift L3° (DC ~ 50 kHz)
- Calibration
- Voltage 2 V ą2%
- Frequency 1 kHz ą1,5%
- Frequency meter (only models OS-MOS620FG and OS-MOS640FG)
- Display 6 digit LED
- Bandwidth to 20 MHz to 40 MHz
- Supply
- Voltage 230 V ą10% 50/60 Hz
- Power consumption 35 W
- Others
- Dimensions 310 x 150 x 455 mm
- Weight 8 kg
|
