| Rend. szám: |
10025512 |
| Elérhető: |
2 db |
| Nettó ár: |
33 000 Ft |
| Bruttó ár: |
41 910 Ft |
| |
|
| |
|
| Megjegyzés: |

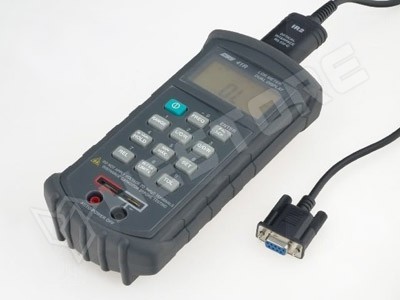

- The CHY41 portable, professional LCR bridge is designed for precision measuring of resistance, capacitance and inductance.
- Measure also quality factor Q and loss tangent D.
- The measures are effectuated with two different measuring frequencies 1 kHz and 120 kHz.
- Fitted with large display, autoranging and RS232 interface
- Features:
- - double backlit display 4, 5 digit (19999) at R, L, C measurement and 4 digit (9999) at simultaneous measurement of Q, D, R
- - resolutions 0,001W, 0,1 ľH, 0,1 pF
- - measured parameters: Ls (Q, D, Rs), Lp (Q, D, Rp), Cs (Q, D, Cs), Cp (Q, D, Rp)
- - measuring frequency: 1 kHz and 120 Hz
- - auto or manual ranging
- - update rate: 1x/s
- Special functions:
- - APO - auto-power off after 10 min. of idling
- - MAX/MIN/AVG - memorises: min., max and average values
- - REL, SET REL - relative measurement
- - PAL/SER - selection of parallel or serial circuit
- - Hi/Lo Limits - selection of alarm limits
- - TOL - measurement of measured tolerances
- - FUSE - fuse state detection
- Characteristics:
- Inductance
- Range 1 kHz 120 Hz
- 10000H - not determined
- 2000H not determined ą(1,0%+5 digits)
- 200H ą(1,0%+ 5 digits) ą 0,7%+ 5 digits)
- 20H ą(0,7%+ 5 digits) ą(0,7%+ 5 digits)
- 2000mH ą(0,7%+ 5 digits) ą(0,7%+ 5 digits)
- 200mH ą(0,7%+ 5 digits) ą(1,0%+ 5 digits)
- 20mH ą(1,2%+ 5 digits) ą(2,0%+ 5 digits)
- 2000ľH ą(2,0%+ 5 digits)
-
- Capacitance
- Range 1 kHz 120 Hz
- 20mF - ą(5,0%+ 5 digits)(DF
- Standard equipment:
- - test leads
- - holster with bracket
- - battery
- - software + optocable
- - manual
|
