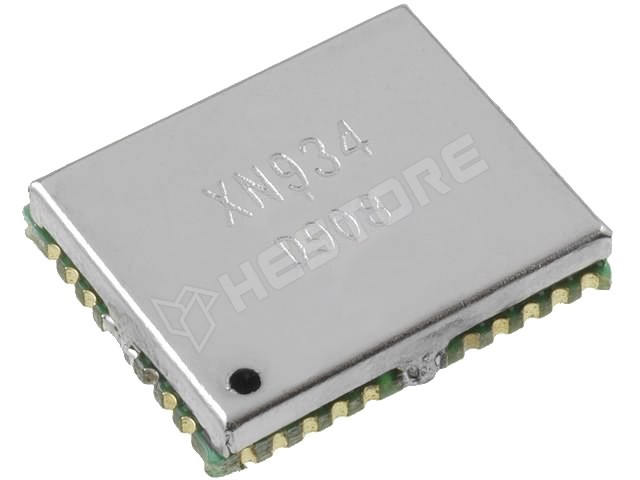

GPS01
Modul GPS, UART, kiment 1PPS
65 channel engine for high performance acquisition
GPS L1 C/A Code
Perform 8 million time-frequency hypothesis testing per second
Open sky hot start 3 sec
Open sky cold start 36 sec
Signal detection better than –157dBm
Reacquisition sensitivity –143dBm
Accuracy 5m CEP
Tracking current < 50mA
Support active antenna
SBAS (WAAS, EGNOS) support
Small size 15.9 x 13.0 x 2.7 mm (LxWxH)
GPS L1 C/A Code
Perform 8 million time-frequency hypothesis testing per second
Open sky hot start 3 sec
Open sky cold start 36 sec
Signal detection better than –157dBm
Reacquisition sensitivity –143dBm
Accuracy 5m CEP
Tracking current < 50mA
Support active antenna
SBAS (WAAS, EGNOS) support
Small size 15.9 x 13.0 x 2.7 mm (LxWxH)
| RoHS | no |
|---|---|
| Manufacturer | HOPE MICROELECTRONICS |
| Number of channels | 65 |
| Supply voltage | 3.3V DC |
| Interface | UART |
| Type of communications module | GPS |
| Receiver sensitivity | -157dBm |
| Communications modules features | PPS output |
| Position determination accuracy | ±5m |
| Time measurement accuracy | ±1µs |
| Velocity measuring accuracy | ±0.1m/s |
