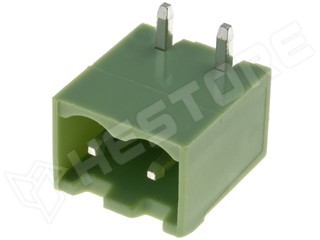

TBG5KW-2GN (CPM5.08SQ-02P)

Name: TBG5KW-2GN (CPM5.08SQ-02P)
Brand: NINIGI
SKU: 100.287.65
Availability: InStock

Sorkapocs, 90° RM5,08 2P zárt

5,08 mm raszter távolság
A végeknél zárt kivitel
Izoláció: 1,5 kV
Névleges feszültség: 300V
Névleges terhelhetőség: 15 A
Érintkező: ónozott sárgaréz
Ház: poliamid PA66
Üzemi hőm.: -40 .. 105 °C
Magasság: 7,8 mm
Mélység: 12 mm

RoHS	yes
Manufacturer	NINIGI, XINYA
Connector	socket
Colour	green
Pole	2
Orientation	90°
Pitch	5.08
Gender	papa
Operating temperature	-40...105°C
Connector variant	pluggable terminal block
Kind of connector	male
Number of pins	2
Electrical mounting	THT
Mechanical mounting	on PCBs
Length	12.22mm
Spatial orientation	angled 90°
Contacts pitch	5.08mm
Type of pin configuration	1x2
Rated voltage	300V
Current rating	15A
Contact plating	tinned
Number of ways	2
Conform to the norm	UL
Contact material	brass
Body material	Poliamid
Flammability rating	UL94V-0
Height	8.4mm, 7.8mm
Depth	12mm
Locking system	friction lock
Kind of connector	male
Korpusz anyaga	PA66

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.287.65

Add to favorites

Quantity (pcs):

Unit price gross (netto)

1+	£ 0.174 (£ 0.137 +VAT)
10+	£ 0.098 (£ 0.077 +VAT)
50+	£ 0.061 (£ 0.048 +VAT)
100+	£ 0.054 (£ 0.043 +VAT)
200+	£ 0.051 (£ 0.040 +VAT)

The price includes 27% VAT.

* The price according to your settings are displayed including VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 200
3 workdays	> 25000
