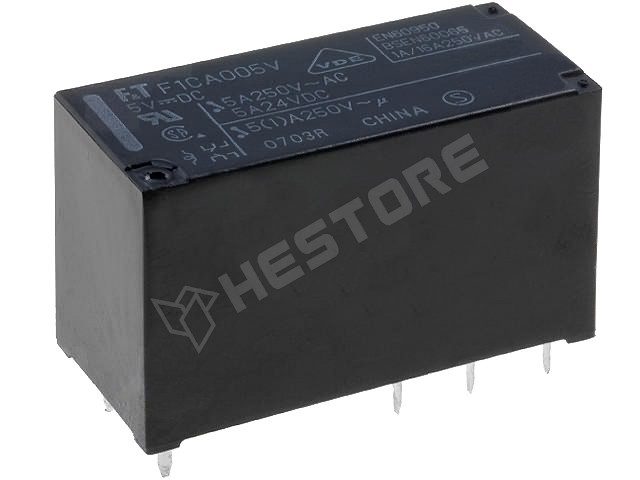

FTR-F1 C A 005 V

Relé 5VDC, 5A/250VAC, 2 ÁK

RoHS	yes
Manufacturer	FUJITSU-TAKAMISAWA
Case	FTRF1
Current	5A
Coil	5V DC
Contact	DPDT
Voltage	250V AC
Mounting	PCB
Terminal pitch	5mm
Operating temperature	-40...75°C
Body dimensions	29 x 12.8 x 16.5mm
Contact plating	gold-plated
DC contacts rating	5 A / 24 VDC
Contact material	AgSnO₂
Contacts configuration	DPDT
AC contacts rating	5 A / 250 VAC
Type of relay	electromagnetic
Rated coil voltage	5V DC
Contact current max.	5A
Switched voltage	max 300V DC, max 400V AC
Relay variant	miniature
Coil resistance	47Ω
Coil voltage min.	3.5V DC
Coil voltage max.	8.2V AC
Operate time	15ms
Release time	5ms
Coil power consumption	530mW
Relay series	FTR-F1
Contact resistance	100mΩ
DC contacts rating @R	5A / 24V DC
AC contacts rating @R	5A / 250V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.281.05

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	817 Ft
10+	608 Ft
50+	587 Ft
100+	574 Ft
200+	563 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 100000
10-15 workdays	> 200

Any questions?

Alternatives, similar/substitute products

LMR2-5D
Relé 5V 2 ÁK DPDT 250VAC 5A
