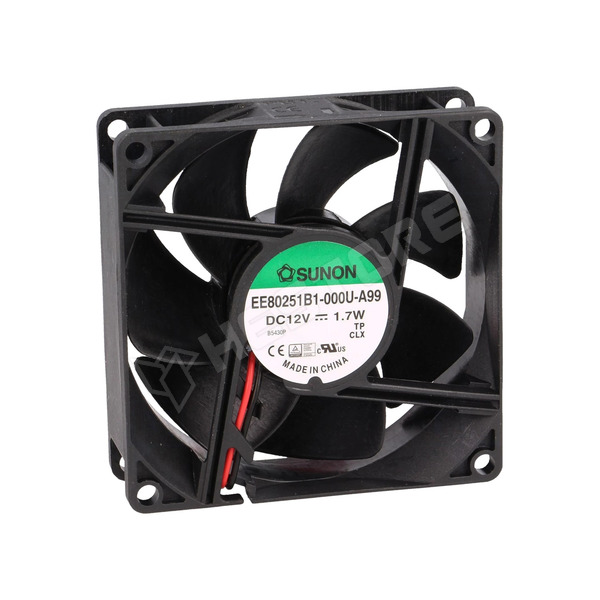

EE80251B1-A99
Fan, DC, 12V DC, 80x80x25mm, ball bearing, 69.66m3/h, shaft
| Manufacturer partno | EE80251B1-000U-A99 |
|---|---|
| RoHS | yes |
| Manufacturer | SUNON |
| Size | 80x80x25 |
| Type | DC |
| Voltage | 12V |
| Weight | 75g |
| Operating voltage | 4.5...13.8V |
| Operating temperature | -10...70°C |
| Supply voltage | 12V DC |
| Enclosure material | thermoplastic |
| Current rating | 0.145A |
| Leads | 2 leads |
| Min. insulation resistance | 500MΩ |
| IP rating | E |
| Flammability rating | UL94V-0 |
| Wire size | 28AWG |
| Cable length | 300mm |
| Type of fan | DC |
| Fan kind | shaft |
| Fan dimensions | 80x80x25mm |
| Power consumption | 1.7W |
| Fan efficiency | 69.66m3/h |
| Noise level | 33dBA |
| Bearing type | ball bearing |
| Rotational rate/speed | 3200 (±10%)rpm |
| Current and power consumption tolerance | ±15% |
| Impeller material | thermoplastic |
| Static pressure | 4.57mm H2O |
| Fan motor | brushless DC |
| Additional functions | Autorestart |
| Kind of fan | shaft |
| Kind of Bearing | ball bearing |
